Rish Relay 256-PLx - Synchro-check Relay

The Synchro-check relay can be used to assist in the semiautomatic paralleling of two AC power systems. The Rishabh Paralleling protector provides manual/automatic switching of the generator to the busbar without damage or disturbance to the system.

Download & shares

LED trip indication
Two pole relay contacts (optional)
Adjustable synchronizing set points
Live and Dead bus versions

Principle of operation

MODEL 256 - PLL

The relay continuously monitors the voltage, phase displacement, and frequency of two supplies. A single set point adjustment permits the selection of suitable matching, and a red LED illuminates when the relay is energized, indicating that the two supplies are well matched and it is safe to close the breaker.

MODEL 256 - PLD

This version operates in the same way as model 256-PLL but includes an additional dead bus detection function. If there is a requirement for a continuous supply or emergency power, then the generator can be connected without synchronizing, thus ensuring continuity of supply. The absence of bus voltage will cause the relay to energize.

The relay provides one pair of normally open and one pair of normally closed contacts. An LED indicates a relay-energized state. The synchronizing set point limits are user-adjustable.

Applications

Co-generation
Generator sets
Gen-Bus synchronizing
Bus-Bus synchronizing
Assists in manual synchronizing
Monitors auto-synchronizing systems

People Also Look For

Crafted with precision and reliability, our products ensure top performance and durability. Experience excellence with every measurement.

View All

Rish ELPR - Earth Leakage Protection Relay

The purpose of Earth Leakage protection is to measure the Earth leakage current of an electrical installation, or part of an installation, and interrupt the power supply if the Earth-Leakage current becomes dangerous to property.

Rish Relay - PHR

Rish Relay -PHR monitors AC voltage of a system/equipment and protects it from phase failure issues. Suits applications such as Control close loop operations, Conveyor system, motor protection from faults like incorrect phase sequence, unbalance in phase or loss of phase

Rish Relay - VR

Rish Relay - VR monitors AC voltage of a system/equipment and protects it from overvoltage, undervoltage and phase failure issues. As well as it indicates the occurrence of faults with help of LED indications

Rish Relay - AR

Rish Relay - AR monitors AC current of a system/equipment and protects it from overcurrent, undercurrent and current unbalance. As well as it indicates the occurrence of faults with help of LED indications. It is a potentiometer based relay thus it is easy to programme trip points and time delays

Rish ELR - Digital Earth Leakage Relay (96 x 96 mm & DIN Rail)

Rish Relay 252-PAx - AC Current Relay

The AC Current provides continuous surveillance of the monitored circuit. When the measured current moves outside the set point limit, the relay will operate. An adjustable time delay is provided to prevent the relay from tripping for a predetermined period to prevent nuisance tripping.

Rish Relay - V/Hz (Digital Line Monitoring Relay)

Rish Relay V/Hz is used to protect against Over Voltage, Under Voltage, Phase Unbalance, Phase Sequence detection, Phase Failure detection, Under and Over Frequency conditions.

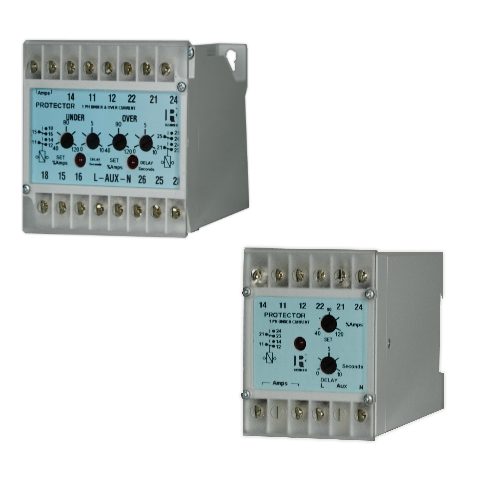

Rish Relay 253-PVx - AC Voltage Relay with Adjustable Differential
